TORNOS
"IDEAL PARA TALLER DE ENSAMBLE DE MANGUERAS HIDRAULICAS"
! No dependa del tiempo de terceros !
"IDEAL PARA TALLER DE ENSAMBLE DE MANGUERAS HIDRAULICAS"
! No dependa del tiempo de terceros !

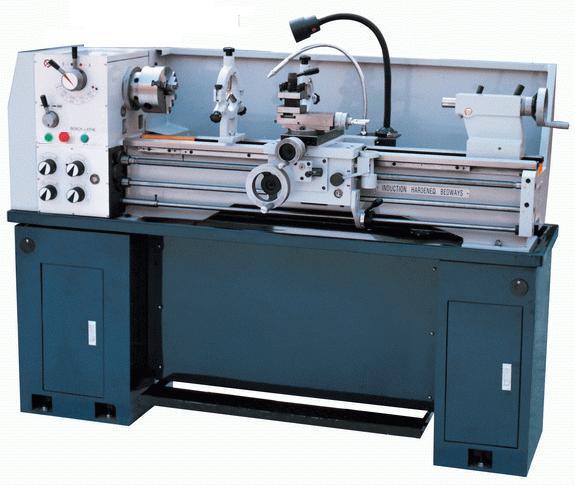

| MAIN DATA | |
| Swing over bed: | 13" (330mm) |
| Distance between centers: | 40" (1000mm) |
| Swing over gap: | 18-3/4" (476mm) |
| SPINDLE | |
| Spindle hole: | 1-1/2" (38mm) |
| Spindle nose: | D 1-4" ASA Std.(ISO) |
| Taper of spindle nose: | M.T.5 |
| Step of speed: | 8 steps |
| Range of speed: | 70-2000 r/min |
| THREAD CUTTING | |
| Inch thread(34kinds): | 4-56T.P.I. |
| Metric thread(26kinds): | 0.4-7.0mm |
| FEED | |
| Longitudinal feeds (inch) (32kinds): | 0.002-0.0548" /rev |
| Longitudinal feeds (metric) (32kinds): | 0.052-1.392mm/rev |
| Cross feeds (inch) (32kinds): | 0.0007-0.0187" /rev |
| Cross feeds (metric) (32kinds): | 0.014-0.380mm/rev |
| TAILSTOCK | |
| Diameter of barrel: | 1-1/4" (32mm) |
| Barrel travel: | 3-3/4" (95mm) |
| Taper of barrel: | M.T.3 |
| MOTOR | |
| Voltage/Frequency: | As customer''s requirement |
| Power: | 1.5Kw(2HP) |
| SHIPMENT DATA | |
| Packing size Machine: | 1920 x 760 x 760mm |
| Stand (Large, Small): | As customer''s requirement |
| N.weight/G.weight (machine): | 500kg/560kg |
| Loading amount: | 18pcs/20''container |
